ABC

1⁄4” x 1 1⁄4” Fast-acting ceramic tube fuses

Technical Data

2000

Effective May 2017

Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written

approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly

used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also

reserves the right to change or update, without notice, any technical information contained in this bulletin.

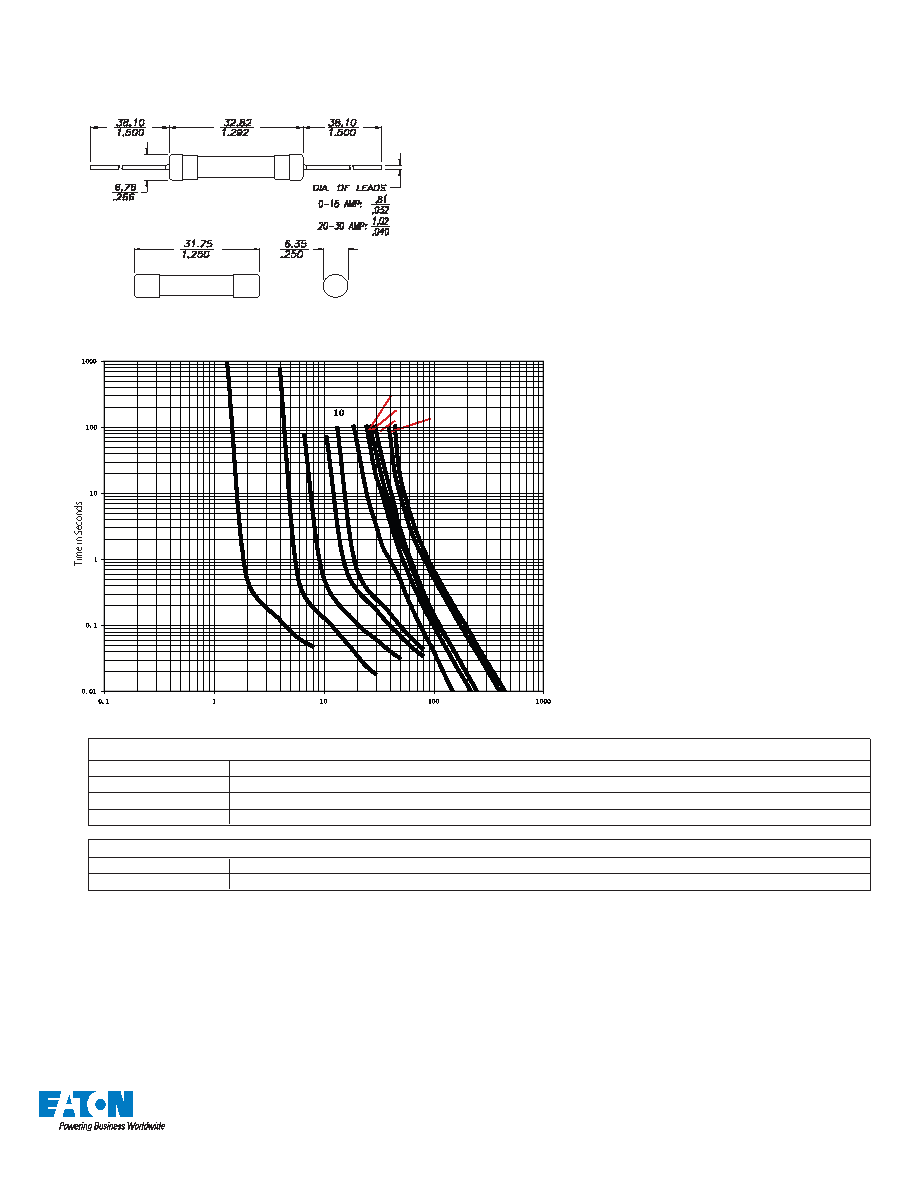

Dimensions - mm

DrawingNottoScale

Time-Current Curves

1

3

15

18

10 12

20

25

5

8

30

Current in Amps

PACKAGINGCODE

PackagingCode

Description

BK

100piecesoffusespackedintoacardboardcarton

BK1

1000piecesoffusespackedintoacardboardcarton

BK8

8000piecesoffusespackedintoacardboardcarton

OPTIONCODE

OptionCode

Description

V

Axialleads-coppertinnedwirewithnickelplatedbrassovercaps
