Technical Data
10433
Effective September 2015
HCM1307
High current power inductors
www.eaton.com/elx

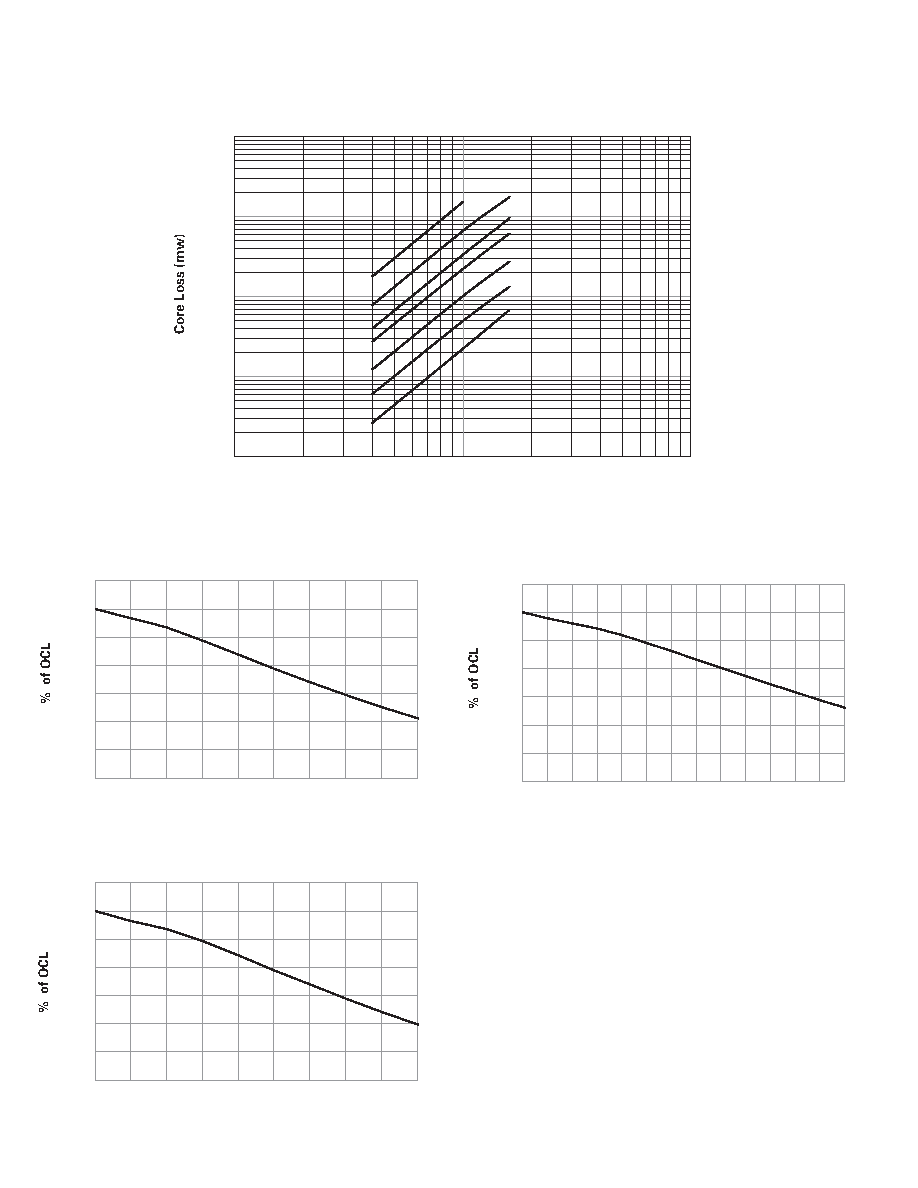

Core loss vs. Bp-p
Inductance characteristics
0.001
0.010
0.100
1.000
10.000
100
1000
10000
Bp-p (Gauss)
50kHz
25kHz
200kHz
100kHz
300kHz
500kHz
1MHz
40%
50%
60%
70%
80%
90%
100%
110%
0102030405060708090
HCM1307-R47-R
40%
50%
60%
70%
80%
90%
100%
110%
05
10 15 20 25 30 35 40 45 50 55 60 65
I
DC
(Amps)
HCM1307-1R0-R
I
DC
(Amps)
40%
50%
60%
70%
80%
90%
100%
110%
05
10
15
20
25
30
35
40
45
HCM1307-3R3-R
I
DC
(Amps)
