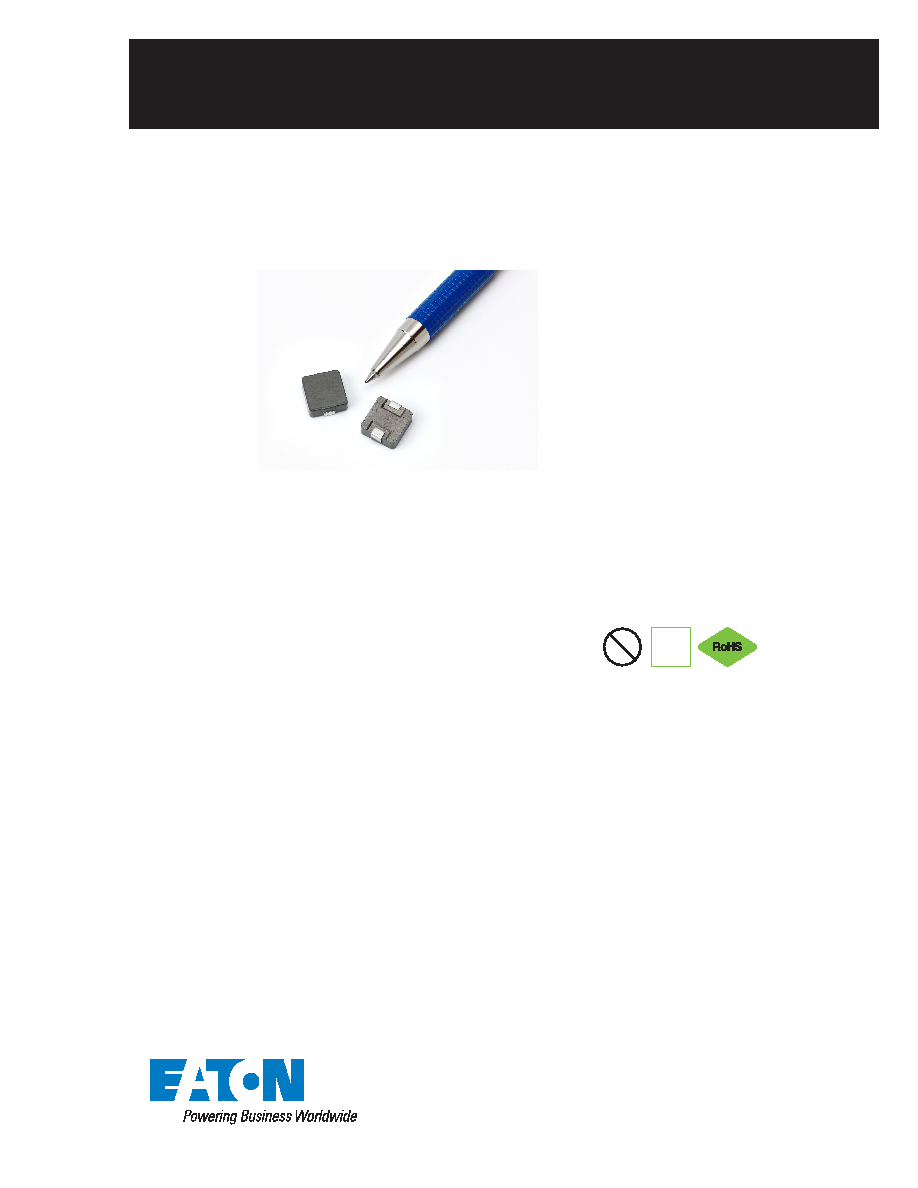

Technical Data 4449

Effective July 2017

Supersedes June 2012

HCM1103

High current power inductors

Product features

•

11.5 x 10.3 x 3.0 mm maximum surface

mount package

•

Iron powder core material

•

Magnetically shielded, low EMI

•

High current carrying capacity, low core losses

•

Inductance range from 0.12 µH to 22.0 µH

•

Current range from 3.0 A to 75 A

•

Halogen free, lead free, RoHS compliant

Applications

•

Voltage Regulator Module (VRM)

•

Multi-phase regulators

•

Point-of-load modules

•

Desktop and server VRMs and EVRDs

•

Base station equipment

•

Notebook and laptop regulators

•

Battery power systems

•

Graphics cards

•

Data networking and storage systems

Environmental Data

•

Storage temperature range (Component):

-55 °C to +125 °C

•

Operating temperature range: -55 °C to +125 °C

(ambient plus self-temperature rise)

•

Solder reflow temperature:

J-STD-020 (latest revision) compliant

Pb

HALOGEN

HF

FREE
