Technical Data 4133
Effective July 2017
Supersedes March 2007
Product features
•

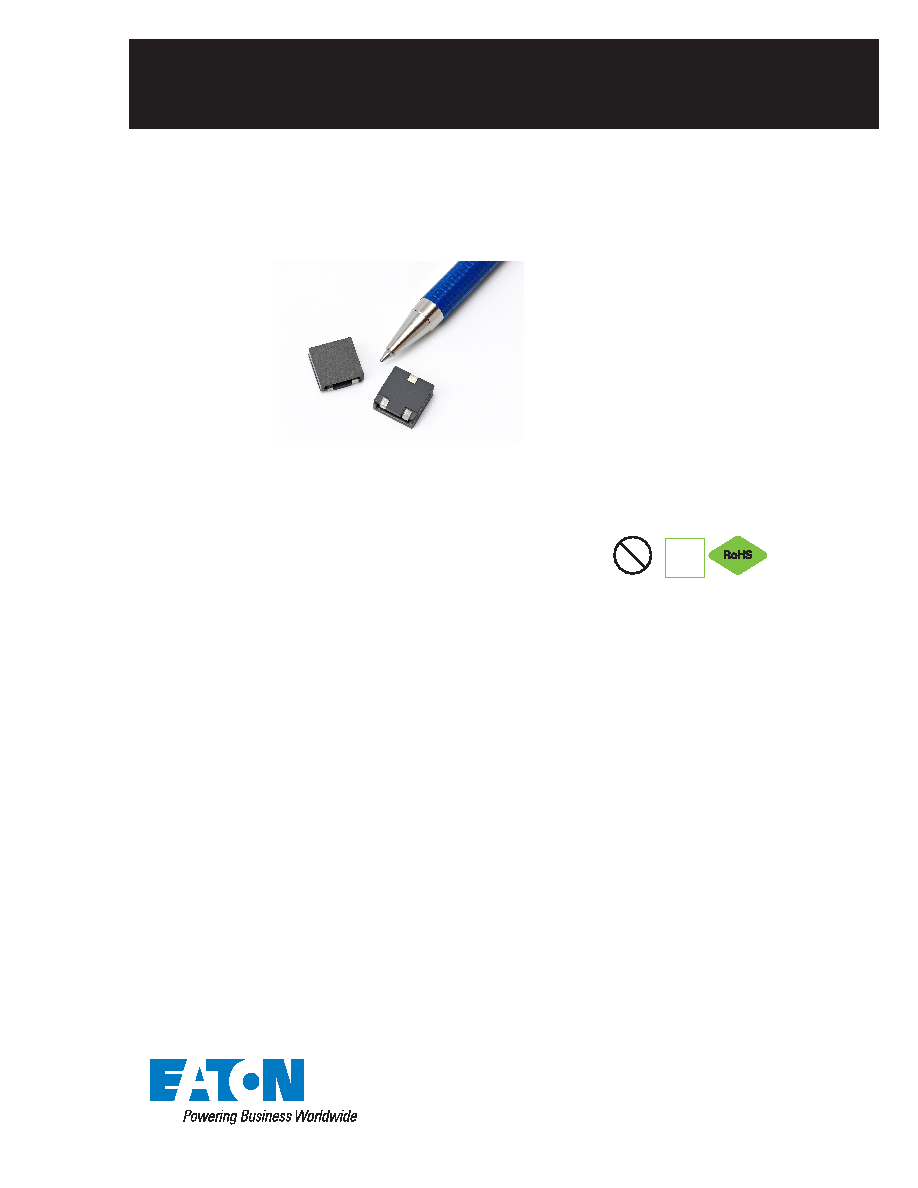

12.5 mm x 12.5 mm x 5.0 mm surface mount
package
•
Ferrite core material
•
Inductors designed for higher speed switch
mode applications requiring low voltage and high
current
•
Design utilizes ferrite core with high DC bias
resistance and low core loss
•
Inductance range from 0.47 µH to 4.7 µH
•
Current range from 36.0 A to 10.4 A
•
Frequency range 100 kHz to 1 MHz
Applications
•
Storage temperature range (component):
-40 °C to +125 °C
•
Operating temperature range: -40 °C to +125 °C
(ambient plus self-temperature rise)
•
Solder reflow temperature:
J-STD-020 (latest revision) compliant
HCF1305
High frequency, high current power inductors
Pb HALOGEN
HF
FREE
•
Next generation processors
•
High current DC-DC converters
•
VRM, multi-phase buck regulators
•
PC Workstations, Routers, Servers
•
Telecom soft switches
•
Base stations
Environmental data
