FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1701

PI10040Q1 TYPE

●FEATURE

1.

Shielded construction，Frequency range up to 5MHz

2.

AEC-Q200 Grade 1 qualified

●Applications

1.

Notebook, server application, High current power supplier

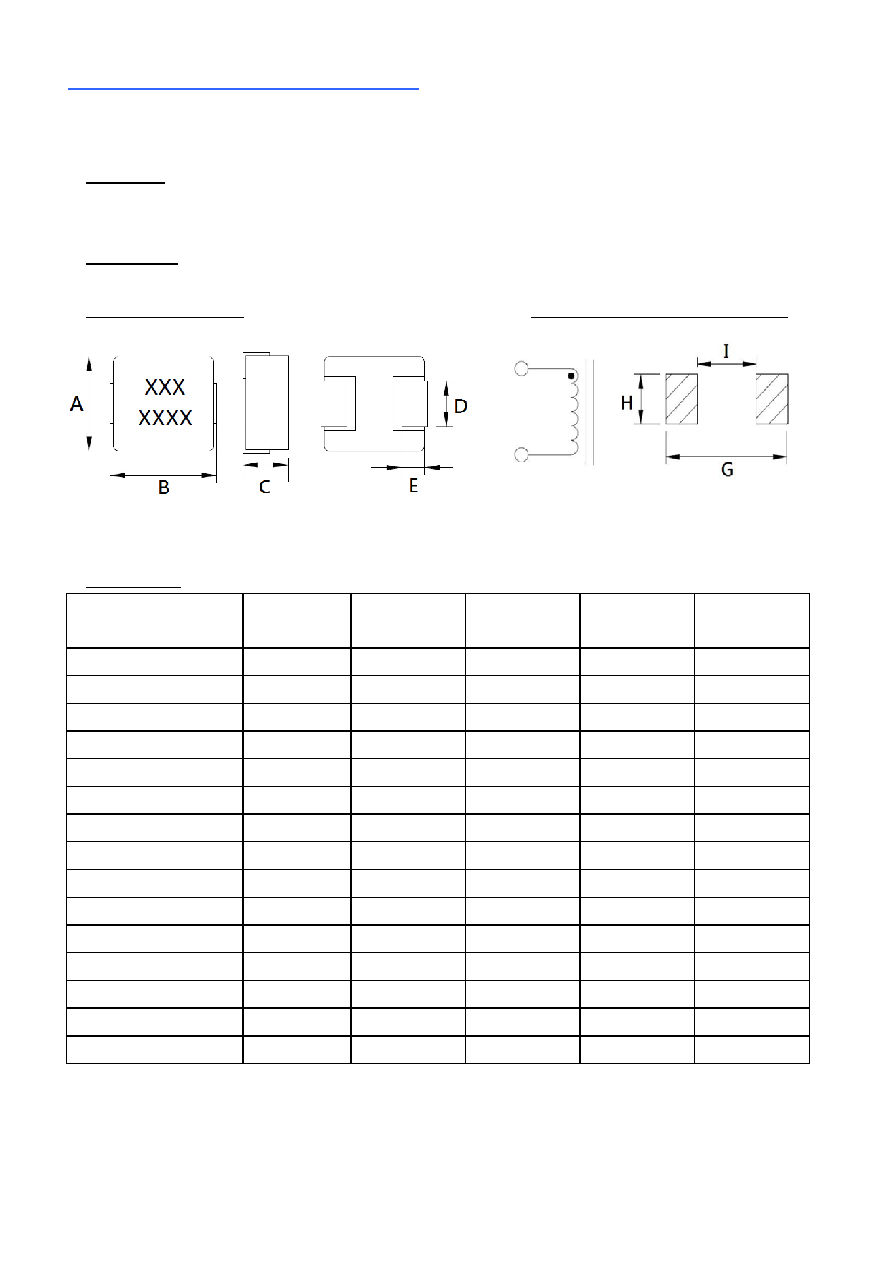

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=10.30m/m Max ; B=11.50m/m Max ; C=4.00m/m Max. ; D=refer Note.6 ; E=2.00m/m Ref. ;

G=12.00m/m Ref. ; H=4.6m/m Ref. ; I=5.00m/m Ref.

●Specification

P/N

L

(μH)

RDC

(m

Ω) Typical

RDC

(m

Ω) Max

Isat

(A)

Irms

(A)

PI10040Q1-R36M

0.36±20%

0.85

1.20

50

32

PI10040Q1-R47M

0.47±20%

1.80

2.00

41

25

PI10040Q1-R56M

0.56±20%

2.30

2.50

40

22

PI10040Q1-1R0M

1.0±20%

3.90

4.00

36

19

PI10040Q1-1R5M

1.5±20%

5.10

6.50

20

16

PI10040Q1-2R2M

2.2±20%

7.50

8.50

19

13

PI10040Q1-3R3M

3.3±20%

10.3

11.5

16

11

PI10040Q1-4R7M

4.7±20%

14.5

16.5

14

8.0

PI10040Q1-5R6M

5.6±20%

17.6

23.5

12

8.0

PI10040Q1-6R8M

6.8±20%

21.2

25.5

11

7.5

PI10040Q1-100M

10±20%

37.5

42.0

8

5.0

PI10040Q1-220M

22±20%

85.0

92.0

6

3.5

PI10040Q1-330M

33±20%

125

150

4

3.0

PI10040Q1-470M

47±20%

170

191

3

3.0

PI10040Q1-680M

68±20%

280

340

3

2.5
