IP5312 Folha de dados(PDF) 2 Page - Injoinic Technology Co.,Ltd.

Nome de Peças IP5312
Descrição Electrónicos  3A charging, 15W discharge, integrated fast charge input and output function, mobile power supply, SOC
PDF  17 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  INJOINIC [Injoinic Technology Co.,Ltd.]
Página de início  http://www.injoinic.com
Logo INJOINIC - Injoinic Technology Co.,Ltd.

IP5312 Folha de dados(HTML) 2 Page - Injoinic Technology Co.,Ltd.

  IP5312 Datasheet HTML 1Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 2Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 3Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 4Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 5Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 6Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 7Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 8Page - Injoinic Technology Co.,Ltd. IP5312 Datasheet HTML 9Page - Injoinic Technology Co.,Ltd. Next Button
Zoom Inzoom in Zoom Outzoom out
 2 / 17 page
background image
IP5312
V1.0
Email: service@injoinic.com
2 / 17
Copyright © 2014, Injoinic Corp.
典型应用
IP5312
TYPE-A
Micro-B
TYPE-A
VOUT2D
VOUT2G
VOUT2
GND
VING
VIN
DP
DM
VOUTG
VOUT
DM
DP
VOUT
GND
VIN
GND
VSN
VSP
VSYS
VSYS
VSYS
VSYS
LX
VREG
L1
L2
L3
L4
VSET
LIGHT
KEY
VREG
VREG
2.2uH
GND
AGND
PGND
10mOhm
BAT
VREG
BAT
RSET
NTC
PGND

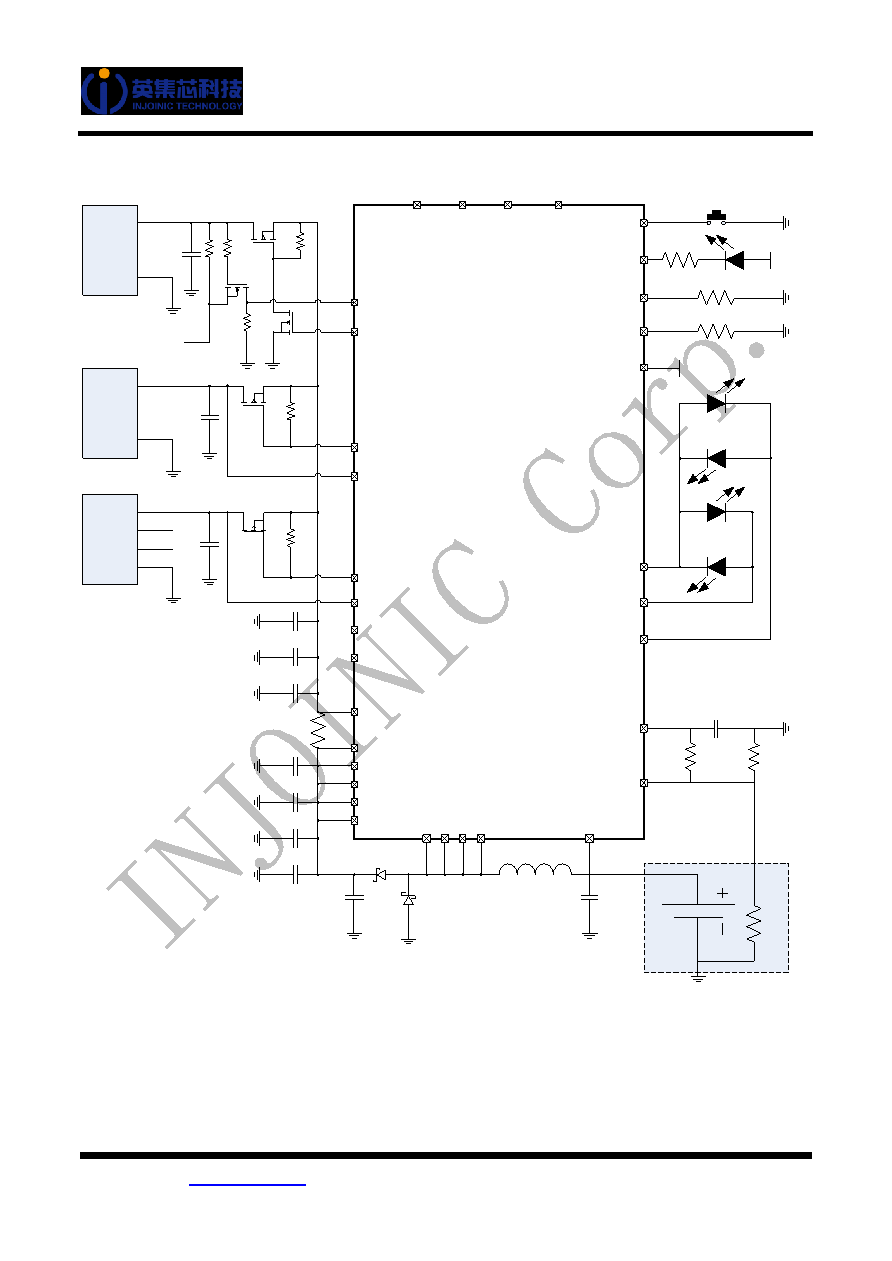

图 1 TYPE-A +Micro-B +TYPE-A 简化应用原理图(4 LED 指示电量)
