AD8628/AD8629
Rev. C | Page 8 of 20
FREQUENCY (Hz)
70
60
50
40
30
20
0
–10
–20
10
–30
1k
10k
100k
1M
10M
VS = 2.7V
CL = 20pF
RL = 2kΩ
AV = 100
AV = 10
AV = 1

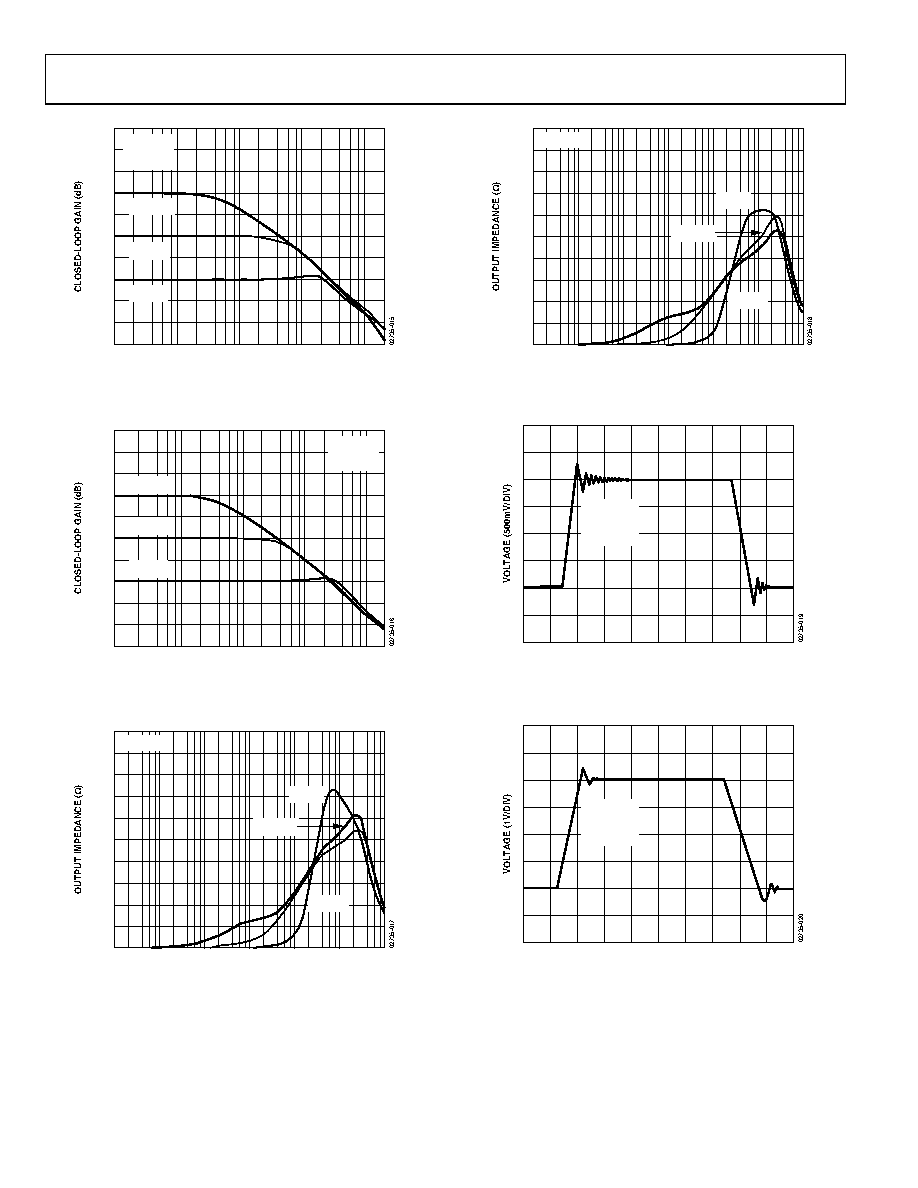

Figure 17. Closed-Loop Gain vs. Frequency at 2.7 V
FREQUENCY (Hz)
70
60
50
40
30
20
0
–10
–20
10
–30
1k
10k
100k
1M
10M
VS = 5V
CL = 20pF
RL = 2kΩ
AV = 100
AV = 10
AV = 1
Figure 18. Closed-Loop Gain vs. Frequency at 5 V
FREQUENCY (Hz)
300
270
240
210
180
150
90
60
30
120
0
100
1k
10k
100k
1M
10M
100M
VS = 2.7V
AV = 100
AV = 10
AV = 1
Figure 19. Output Impedance vs. Frequency at 2.7 V
FREQUENCY (Hz)
300
270
240
210
180
150
90
60
30
120
0
100
1k
10k
100k
1M
10M
100M
VS = 5V
AV = 100
AV = 10
AV = 1
Figure 20. Output Impedance vs. Frequency at 5 V
VS = ±1.35V
CL = 300pF
RL = ∞
AV = 1
TIME (4
µs/DIV)
Figure 21. Large Signal Transient Response at 2.7 V
VS = ±2.5V
CL = 300pF
RL = ∞
AV = 1
TIME (5
µs/DIV)
Figure 22. Large Signal Transient Response at 5 V
