B33
MMCX – [***] – [***]
■Ordering Information
e Applicable cable, PCB mounting style
178B/U : RG-178B/U (
Ø1.8)
316/U
: R/G-316/U (
Ø2.59 max)
FHSB
:
Ø1.48 single shielded cable
PC
: PCB Through Hole type
SMT
: PCB Surface Mount type
qw
e

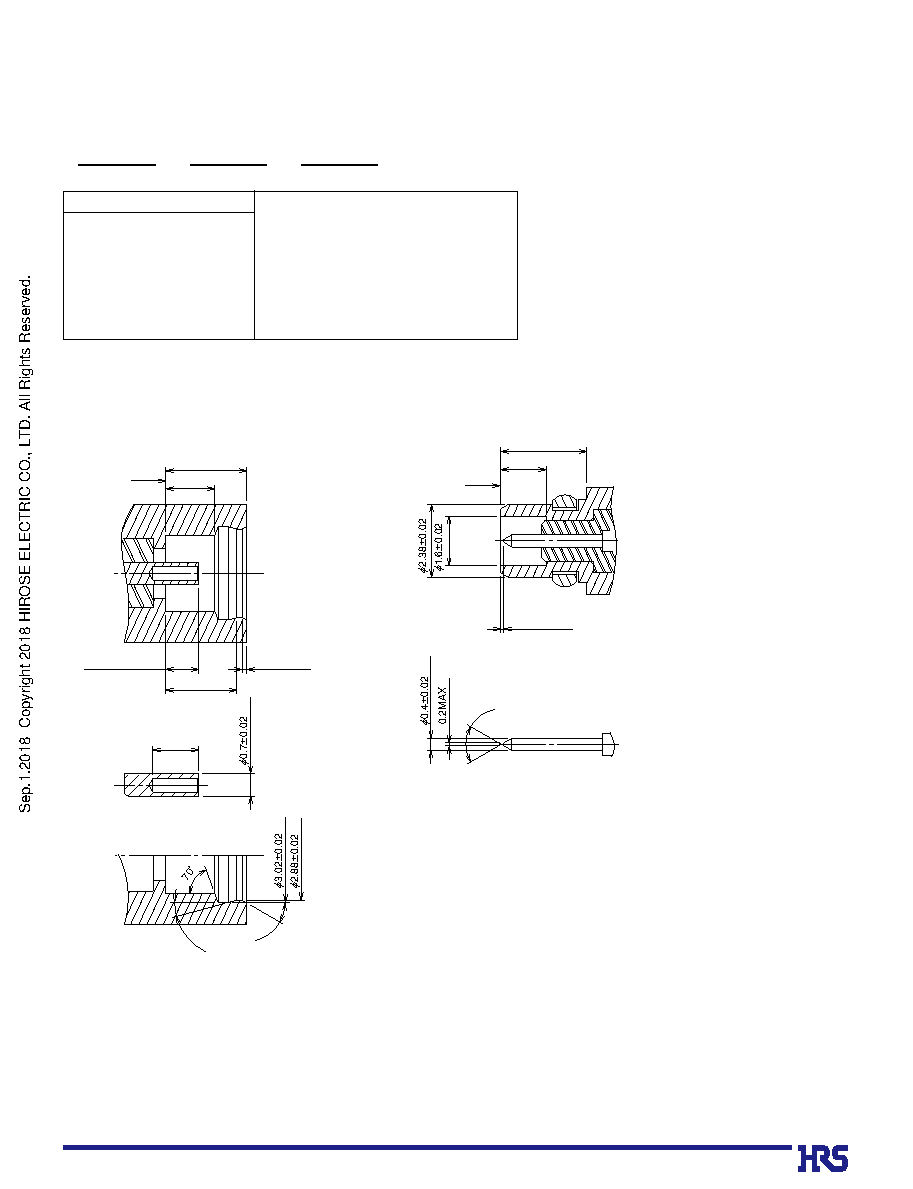

BInterface Dimensions
1.6±0.03
2.59MIN
REF.PLANE
1.05±0.15
2.32±0.02
0.23MAX
15
˚
30
˚
1.4MIN
1.48±0.02
2.69MIN
REF.PLANE
0.1
+0.15
–0.1
60˚
[Jack]
[Plug]
q Series name
: MMCX
w Connector type
P : Straight plug
LP : Right Angle plug
J : Straight jack
R : Receptacle
LR : Right Angle receptacle
