Data Sheet

SSM3302

Rev. A | Page 19 of 20

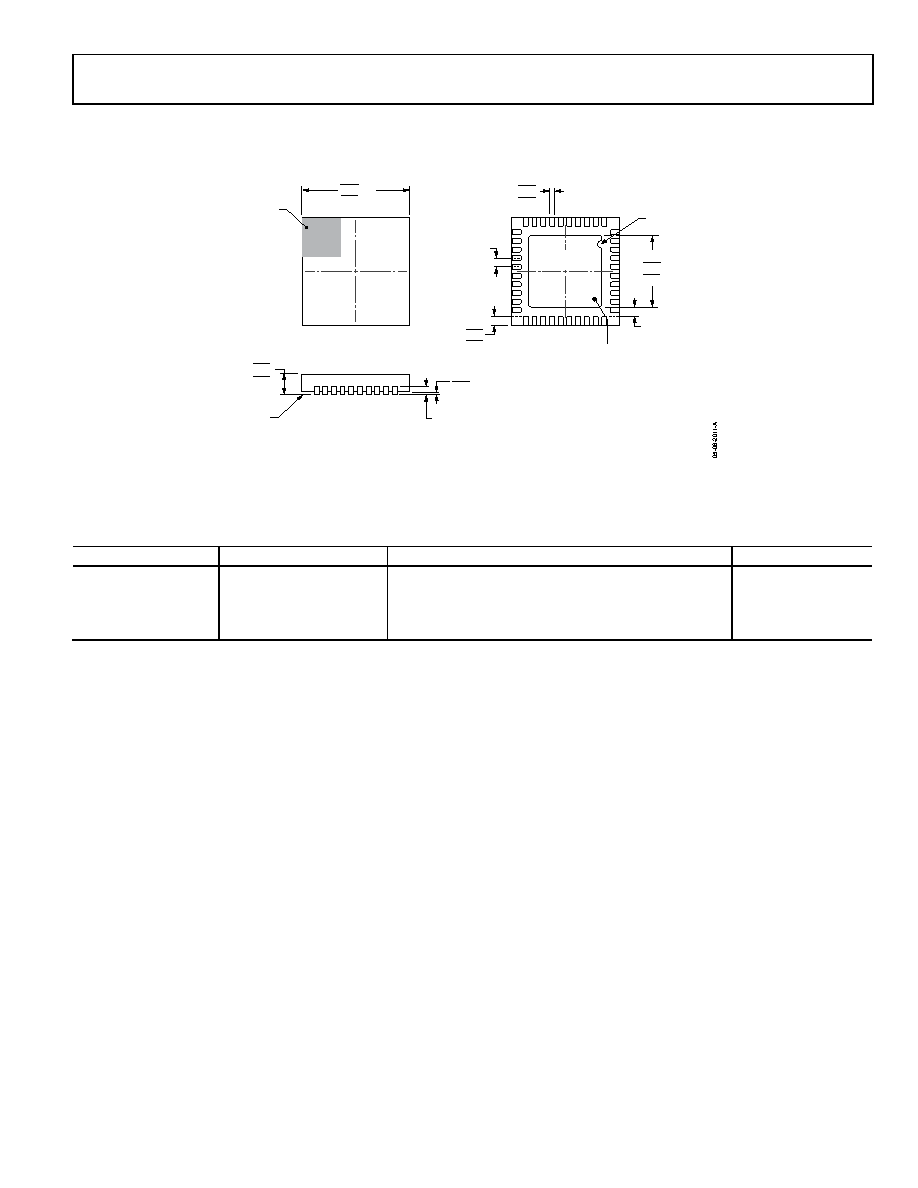

OUTLINE DIMENSIONS

Figure 40. 40-Lead Lead Free Chip Scale Package [LFCSP_WQ]

6 mm × 6 mm Body, Very Very Thin Quad

(CP-40-10)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

SSM3302ACPZ

−40°C to +85°C

40-Lead Lead Free Chip Scale Package [LFCSP_WQ]

CP-40-10

SSM3302ACPZ-RL

−40°C to +85°C

40-Lead Lead Free Chip Scale Package [LFCSP_WQ]

CP-40-10

SSM3302ACPZ-R7

−40°C to +85°C

40-Lead Lead Free Chip Scale Package [LFCSP_WQ]

CP-40-10

EVAL-SSM3302Z

Evaluation Board

1 Z = RoHS Compliant Part.

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

EXPOSED

PAD

PIN 1

INDICATOR

SEATING

PLANE

0.05 MAX

0.02 NOM

0.20 REF

COPLANARITY

0.08

0.30

0.23

0.18

6.10

6.00 SQ

5.90

0.80

0.75

0.70

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.45

0.40

0.35

0.25 MIN

4.45

4.30 SQ

4.25

COMPLIANT TO JEDEC STANDARDS MO-220-WJJD.
