• Metal compound molding type construction

• Magnetically shielded

• Low audible core noise

• Suitable for large current.

• L×W×H:2.7×2.2×1.2mm Max.

• Product weight: 0.36mg (Ref.)

• Moisture Sensitivity Level: 1

Description

• Operating temperature range: -55°C~+125°C (including coil’s self temperature rise)

• Storage temperature range: -55°C~+125°C

Environmental Data

• Carrier tape and reel packaging. 3,000pcs per reel.

Packaging

• DC/DC converter for CPU in Notebook PC. Smartphones, LCD displays, HDDs, DVDs, DVCs,DSCs,PDAs ect..

• Thin type on-board power supply module for exchanger VRM for server.

• Low profile, high current power supplies. Battery powered devices.

Applications

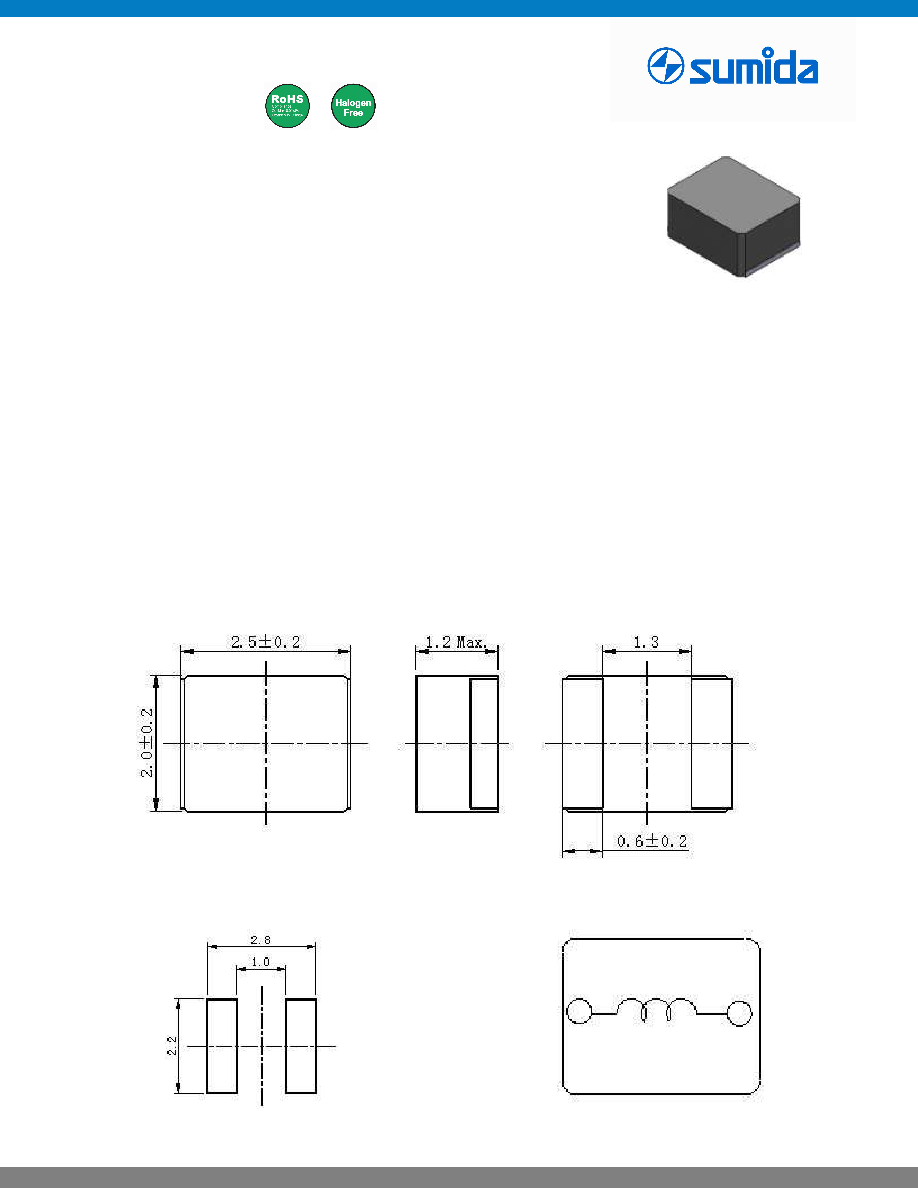

Dimension - [mm]

252012CDMCC/DS

SMD Power Inductor

Recommended Land pattern - [mm]

Wire Connection

Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
