MAINSLINK
Patent Pending
Cable Connections

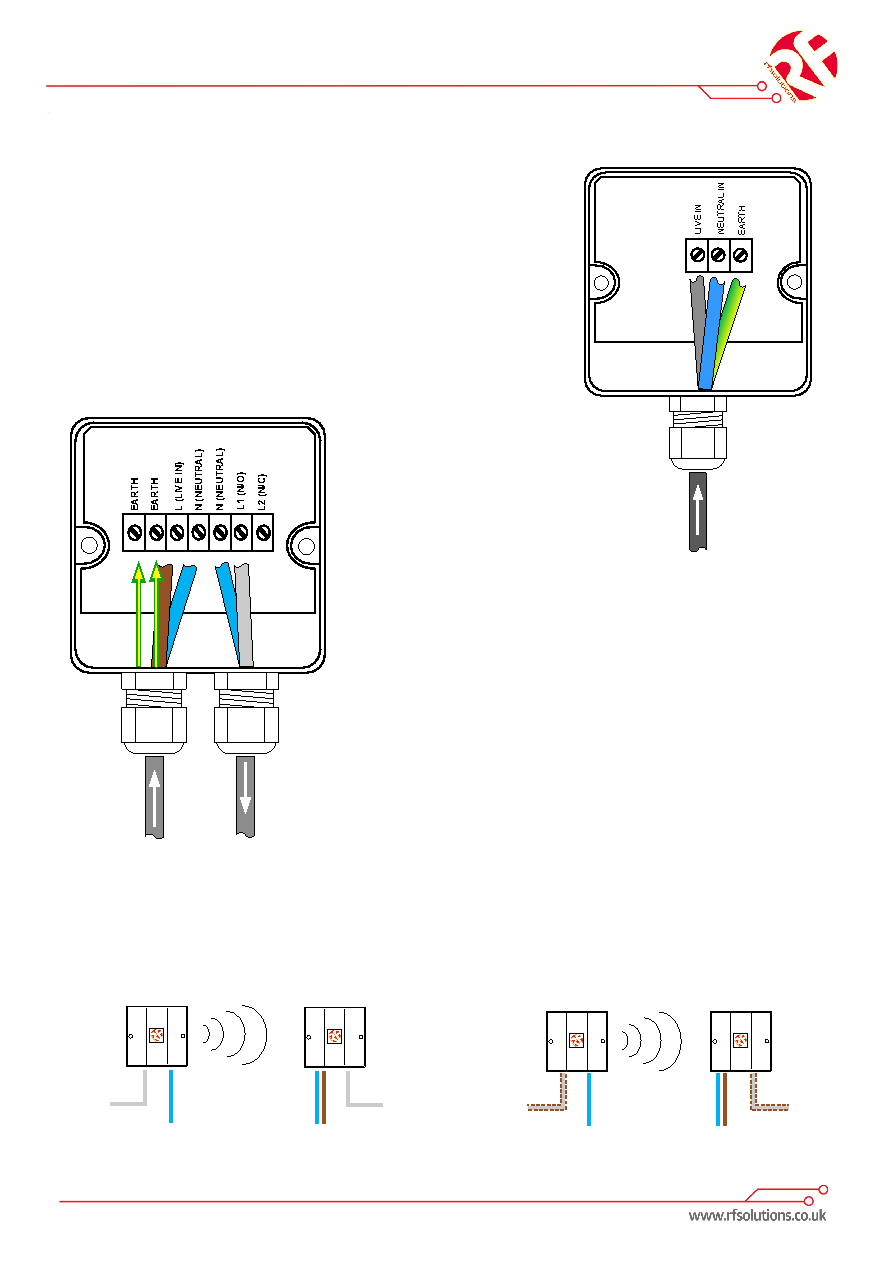

MAINSLINK is very easy to connect, simply wire as follows:
MAINSLINK-TX - Transmitter:
1.
Run a switched Live from your external device or
switch to the MAINSLINK-TX Transmitter and connect into the
screw terminal marked: L (Live)
2.
Run a Neutral to the MAINSLINK-TX and connect to the
terminal marked N (Neutral).
AS SHOWN IN FIG 1.1
CABLE IN
FIG 1.1
MAINSLINK System Operation
Transmitter - MAINSLINK-TX
NEUTRAL IN
SWITCHED LIVE
IN OFF
LIVE IN
SWITCHED LIVE
OUT OFF
NEUTRAL IN
MAINSLINK-TX
MAINSLINK-RX
NEUTRAL IN
SWITCHED LIVE
IN ACTIVE
LIVE IN
SWITCHED LIVE
OUT ACTIVE
NEUTRAL IN
MAINSLINK-TX
MAINSLINK-RX
Receiver - MAINSLINK-RX
FIG 1.2
MAINSLINK-RX - Receiver:
1.
Connect the Supply:
LIVE, NEUTRAL and EARTH.
Connect the Live to the screw terminal marked: LIVE then
connect the NEUTRAL and EARTH
respectively.
2.
Connect the LOAD to the receiver and wire in
as required.
3.
In most applications the LOAD would be
wired as shown in FIG 1.2
Important Notes:
•
All mains powered units must be earthed
•
Hardwired units must be connected via an isolating switch
•
See Safety information on page 5 before installing
SWITCHED LIVE
OUT
CABLE IN
S U P P L Y
L O A D
EARTH
