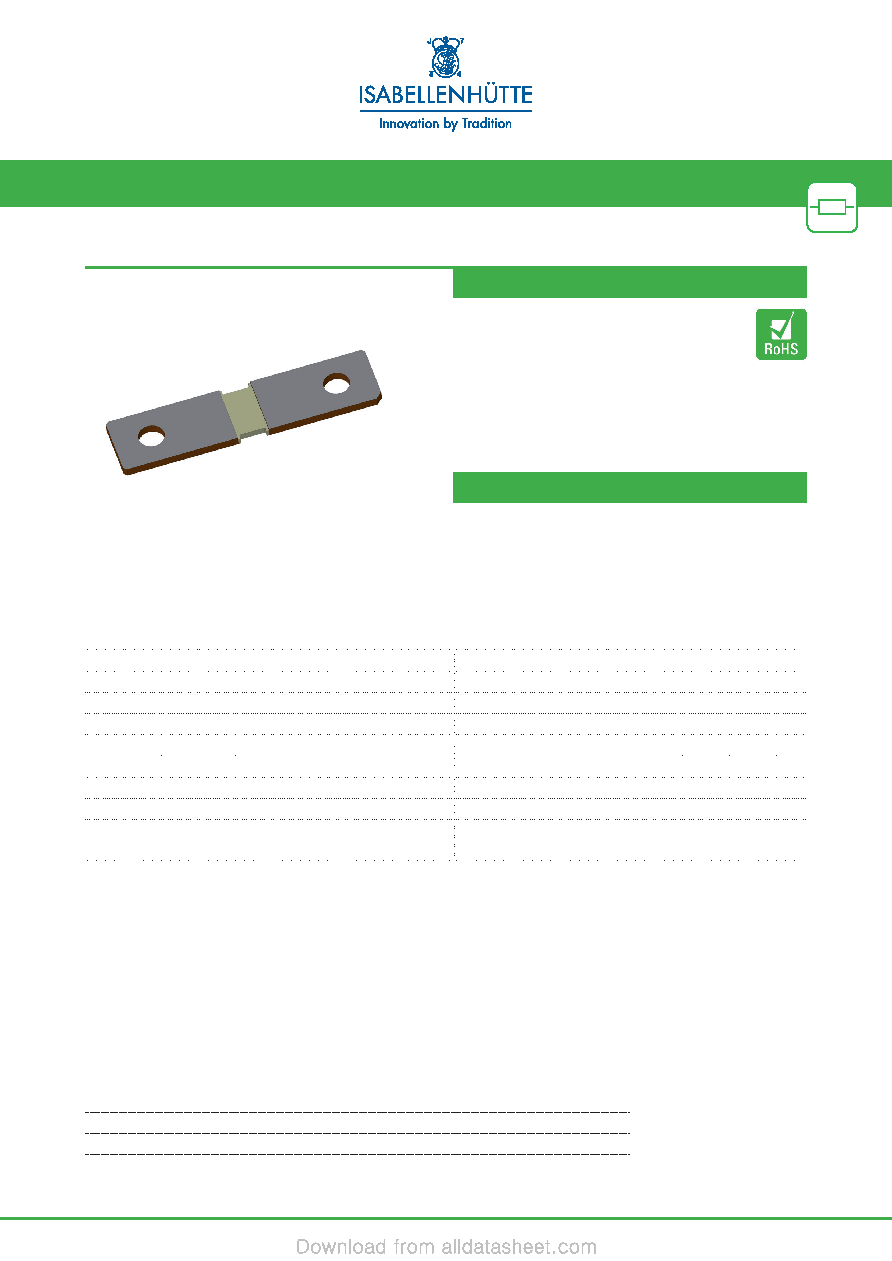

ISA-WELD® // PRECISION RESISTORS

BAS // SIZE 8420 (METRIC)

Isabellenhütte Heusler GmbH & Co. KG // sales.components@isabellenhuette.de // Issue 08-February-2018 // Current valid issue: see www.isabellenhuette.de

▪ Current sensor for EBM (Electronic Battery Management) in

motorcars, trucks, forklifts, hybrid and electric vehicles

▪ Current sensing in bus bars

▪ Current sensing in welding equipments

▪ Up to 30 W permanent power

▪ Continuous current load up to 350 A (0.1 mOhm)

▪ High pulse power rating

▪ Max. fastening torque 10 Nm

▪ Shunt available with tinned or untinned terminals

▪ Further versions with various dimensions upon request

▪ AEC-Q200 qualified (automotive version "A")

Features

Applications

Technical data

Resistance values

mOhm

0.035 / 0.05 / 0.1 / 0.2 / 0.5

Tolerance

%

5

Temperature coefficient (20-60 °C)

ppm/K

50

Applicable temperature range

°C

-40 to +170

Power rating

W

30 (0.035 mΩ)

Internal heat resistance (Rthi)

K/W

see table on page 2

Thermal EMV (0-100 °C)

µV/K

0.6 (MANGANIN®) / 1 (ZERANIN®30)

Inductance

nH

<3

Stability (Nominal load) deviation after 2,000 h

TK = Terminal temperature

< 0.5 % (TK= 110°C )

< 1.0 % (TK= 140°C )

Packaging Information

140 pcs. per tube for automotive version „A“

100 pcs. sealed in plastic bags evacuated and refilled with dry nitrogen for non automotive version
