BCP120C

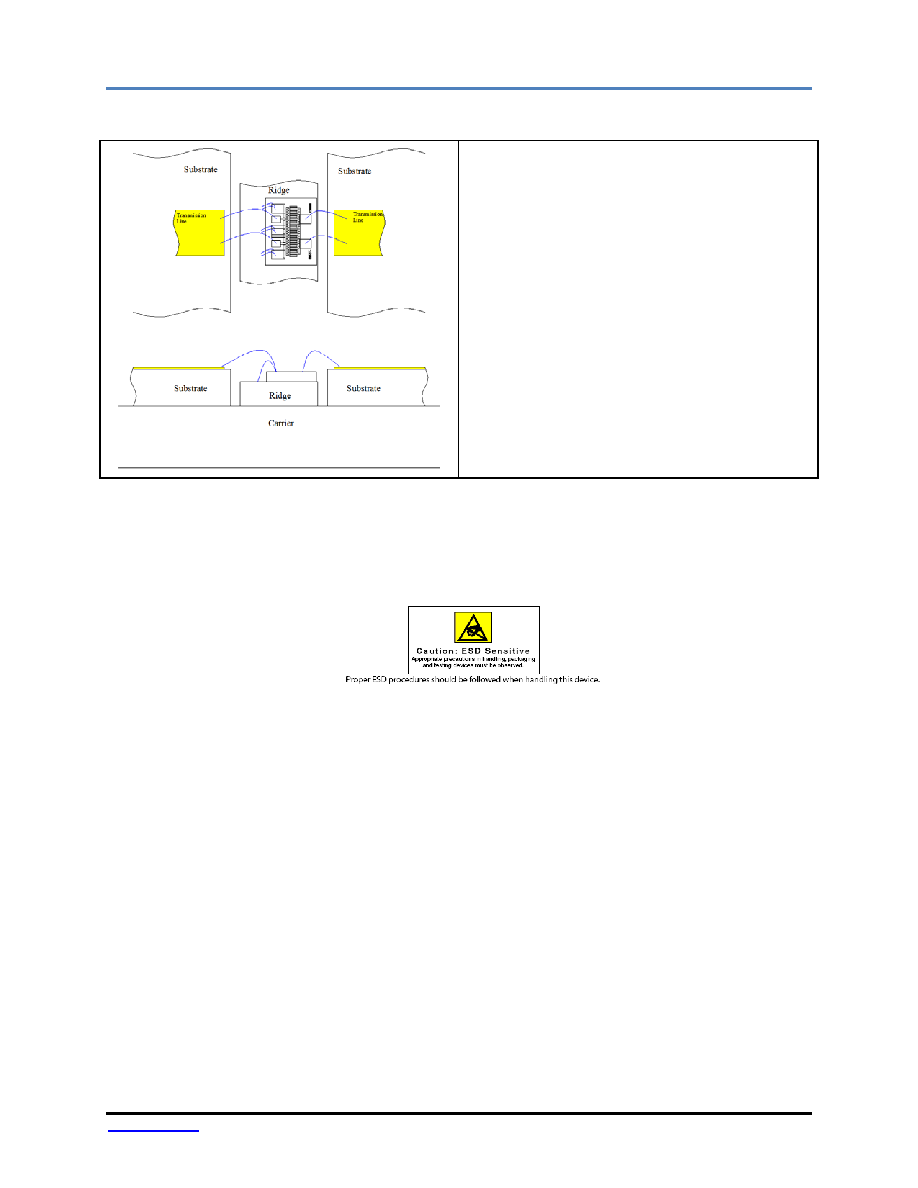

WIRE BONDING INFORMATION

Using 1 mil. diameter, Au bonding wires.

1. Gate to input transmission line

- Length and Height : 600 µm x 250 µm

- Number of wire(s): 1

2. Drain to output transmission line

- Length and Height : 400 µm x 250 µm

- Number of wire(s) : 1

3. Source to ground plate

- Length and Height : 250 µm x 300 µm

- Number of wire(s) : 4
