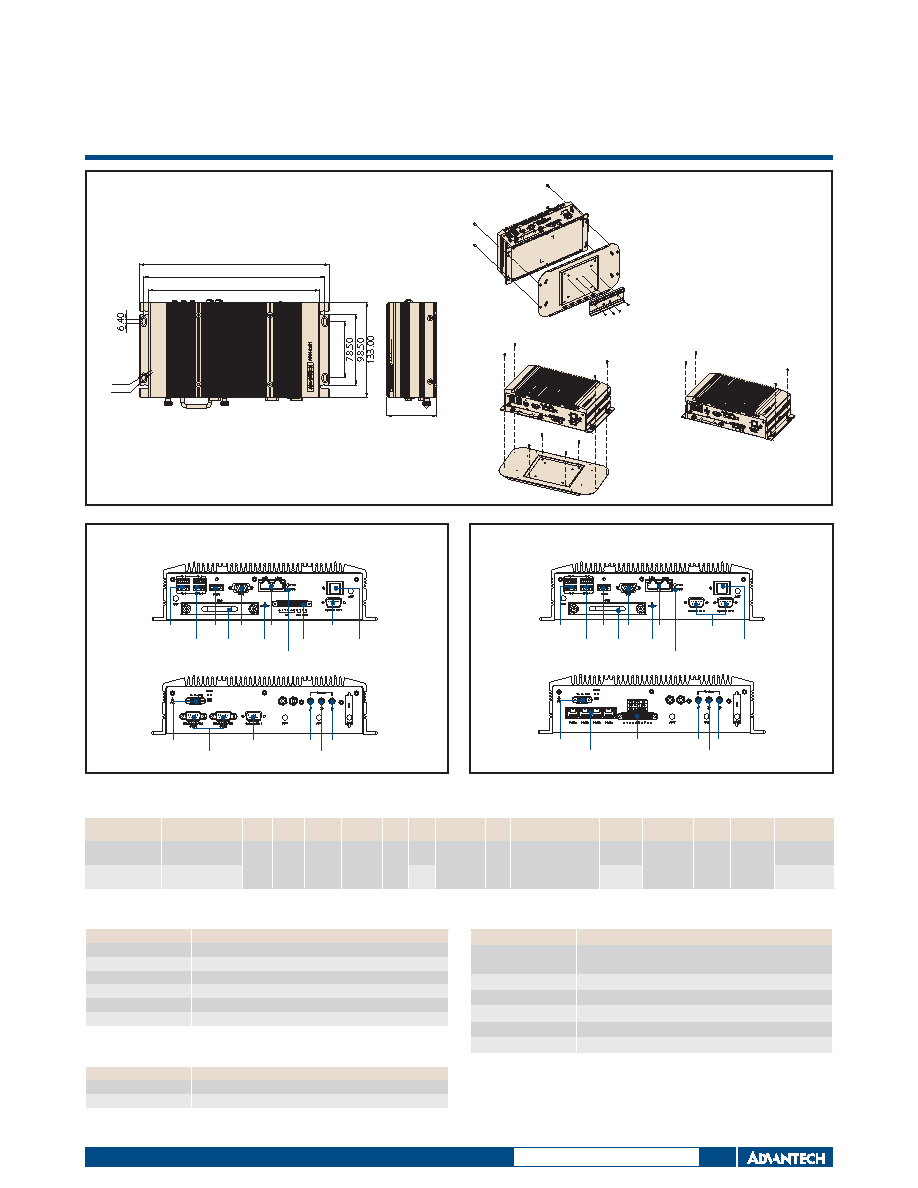

ARK-2121V

ARK-2121V-S3A1E External I/O Mechanical Layout/Drawing

Front Panel

Rear Panel

Front Panel

Rear Panel

ARK-2121V-S9A1E External I/O Mechanical Layout/Drawing

Packing List

Part Number

Description

-

1 x ARK-2121 Unit

-

1 x Driver/Utility CD/Manual

-

1 x User Manual (Simplified Chinese)

1652000049

3-pole phoenix power block 3.81mm

1750001782

1 x GPS antenna Active with 5M SMA cable

1652003235

10-Pin DIO plug in block

Embedded OS

Part Number

Description

TBC

WES8 OS image

TBC

WES7 OS image

*Default BIOS is supported for 64-bit OS installation, BIOS 32-bit OS is supported by project

Ordering Information

Part Number

Intel CPU

RAM 2.5"

Drive mSATA Display GbE PoE

USB

DIO Optional COM or

CANBus

RS-232/

422/485 MiniPCIe

SIM

Holder

Power

Input

Operating

Temperature

ARK-2121V-S3A1E Intel Atom E3825 DC

1.33 GHz

Up to

8GB

1

1

1 x HDMI

1 x VGA

2

N/A

3 x USB2.0

1 x USB3.0

6Di

2Do

2 x RS-232/422/485 or

2 x CANBus 2.oA.B

2

4 x Full Size 2

-30 ~ 70° C

ARK-2121V-S9A1E Intel Atom E3845 QC

1.91 GHz

4

N/A

-30 ~ 60° C

Optional Items

Part Number

Description

TBC

AC-to-DC Adapter with Phoenix Power Plug, 0 ~ 40° C

for Home and Office Use

1700001524

Power Cable 3-pin 180cm, USA type

170203183C

Power Cable 3-pin 183cm, Europe type

170203180A

Power Cable 3-pin 183cm, UK type

AMK-V004E

VESA mounting kit

AMK-R004E

DIN-rail mounting kit

Dimensions

Unit: mm

264.50

252.50

238.20

Ø8.0

Ø3.8

69.2

LINE-OUT

DC INPUT

Optional IO 1

RS-232/422/485

MIC

LINE-IN

SSD LED

ON/OFF

PWR LED

VGA

USB 3.0

HDMI

LAN1

LAN2

Digital IO

SSD

RESET

Optional IO 2

USB 2.0

POE

LINE-OUT

DC INPUT

Digital IO

MIC

LINE-IN

ON/OFF

SSD LED

PWR LED

VGA

USB 3.0

HDMI

LAN1

LAN2

SSD

RESET

Optional I/O

USB 2.0

DIN Rail

VESA mount

Wall mount
