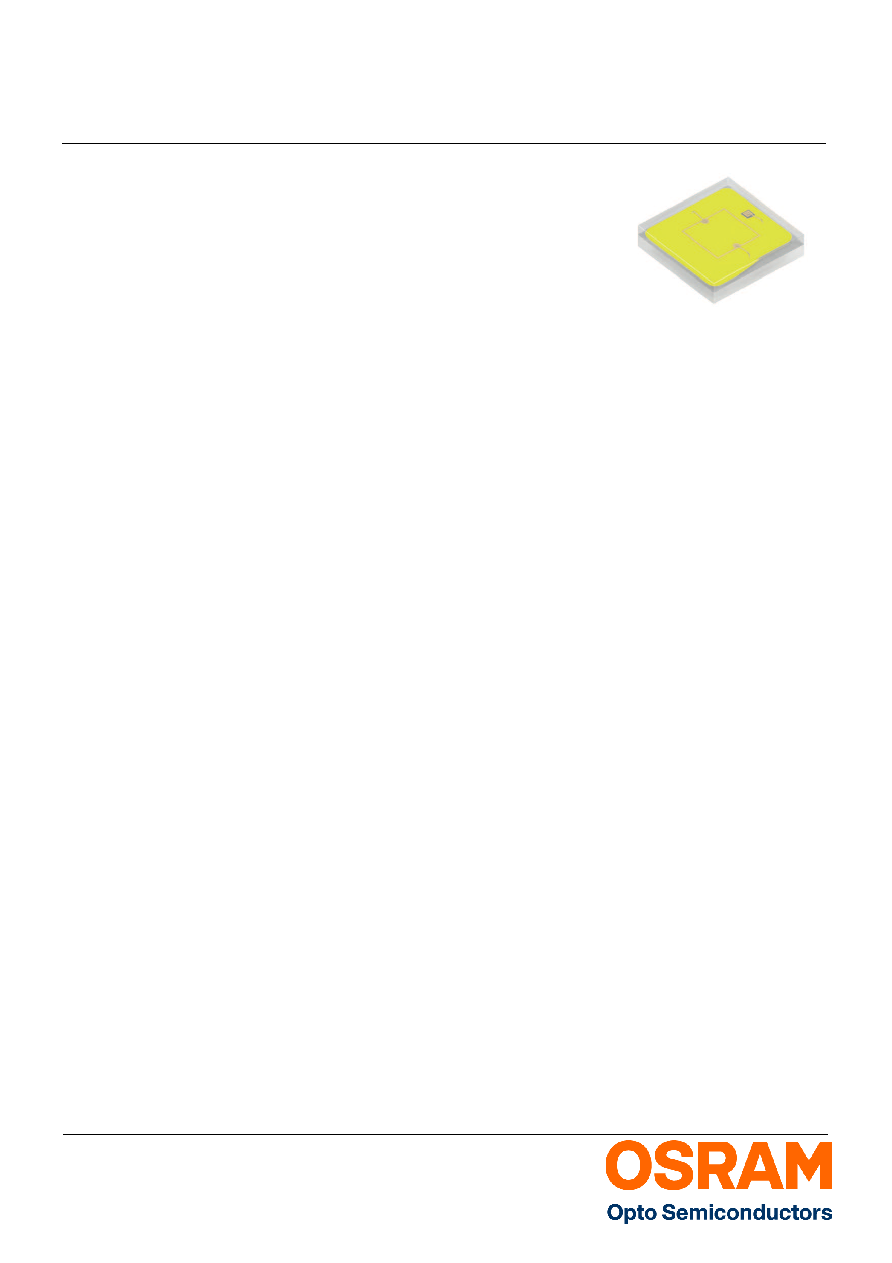

OSLON Square Flat

Datasheet

Version 1.0

KW CSLPM2.PC

The most compact 3 x 3 mm high power LED with an

electrically isolated thermal pad allows for superior

heat dissipation designs. The flat package shape

enhances color homogeneity due to reduced color

over angle variation. Extremely low thermal resistance

helps to maintain the efficiency remarkably high even

when driven at higher currents.

Die kompakte 3 x 3 mm Hochleistungs-LED mit

elektrisch isoliertem Wärmekontakt für beste

Wärmeableitung. Das flache Gehäuse garantiert eine

sehr gute Farbhomogenität über den gesamten

Abstrahlwinkel. Ein extrem niedriger thermischer

Widerstand ermöglicht gute Wirkungsgrade auch im

Betrieb bei hohen Strömen.

Features:

Besondere Merkmale:

•

Package: Ceramic package

•

Gehäusetyp: Keramikgehäuse

•

Technology: ThinGaN (UX:3)

•

Technologie: ThinGaN (UX:3)

•

Viewing angle at 50 % I

V: 120° (Lambertian

Emitter)

•

Abstrahlwinkel bei 50 % I

V: 120° (Lambertscher

Strahler)

•

Color: Cx = 0.32, Cy = 0.33 acc. to CIE 1931

(white); CTR = 5700 K - 6500 K; CRI (min.) = 70

•

Farbe: Cx = 0.32, Cy = 0.33 nach CIE 1931 (weiß);

CTR = 5700 K - 6500 K; CRI (min.) = 70

•

ESD - withstand voltage: 8 kV acc. to

ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

•

ESD - Festigkeit: 8 kV nach ANSI/ESDA/JEDEC

JS-001 (HBM, Klasse 3B)

Applications

Anwendungen

•

Working lamp

•

Arbeitsscheinwerfer

•

Retrofit

•

Retrofit

•

Industrial illumination

•

Industrie-Beleuchtung

•

Transportation

•

Verkehrsmittel
