Appendix Standard Serial I/O Mode 1 (Flash Memory Version)
Mitsubishi microcomputers
M16C / 62A Group
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
256
Example Circuit Application for The Standard Serial I/O Mode 1
The below figure shows a circuit application for the standard serial I/O mode 1. Control pins will vary
according to programmer, therefore see the peripheral unit manual for more information.

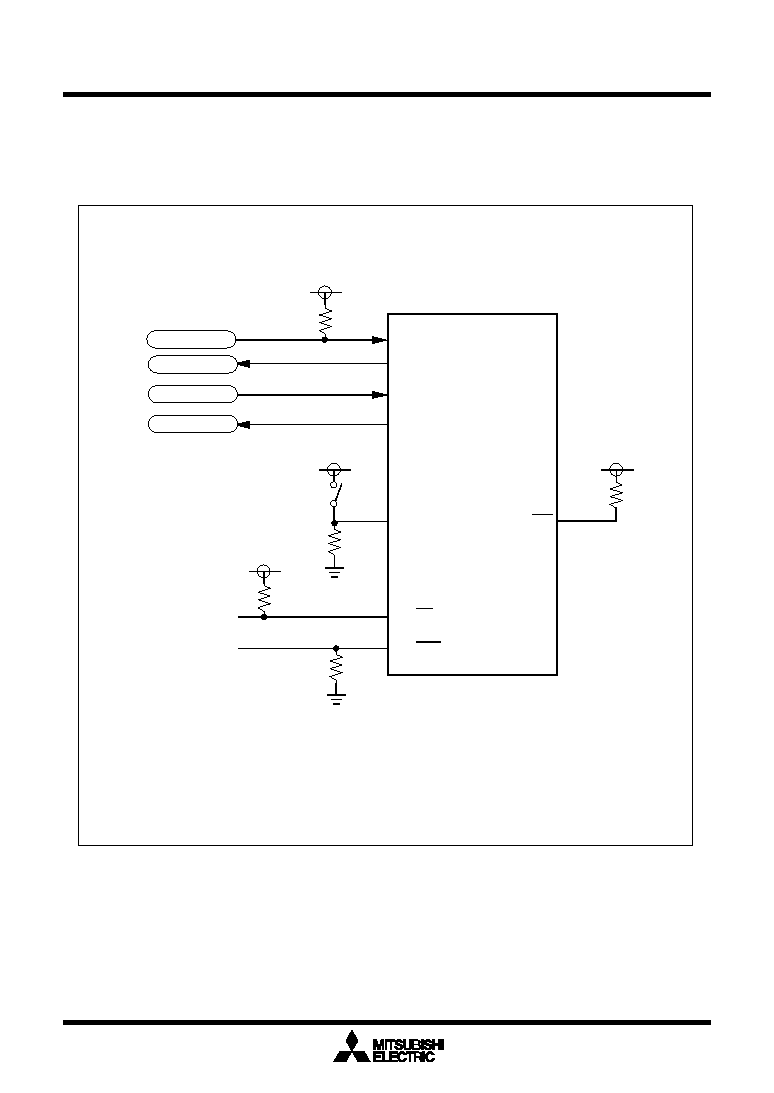

Figure 1.29.21. Example circuit application for the standard serial I/O mode 1
RTS1(BUSY)
CLK1
RXD1
TXD1
CNVss
Clock input
BUSY output
Data input
Data output
P50(CE)
P55(EPM)
M16C/62A Flash
memory version
(1) Control pins and external circuitry will vary according to peripheral unit.
For more information, see the peripheral unit manual.
(2) In this example, the microprocessor mode and standard serial I/O mode
are switched via a switch.
