External ROM
Mitsubishi microcomputers
M16C / 62A Group
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
2-249
5.3 Memory Map

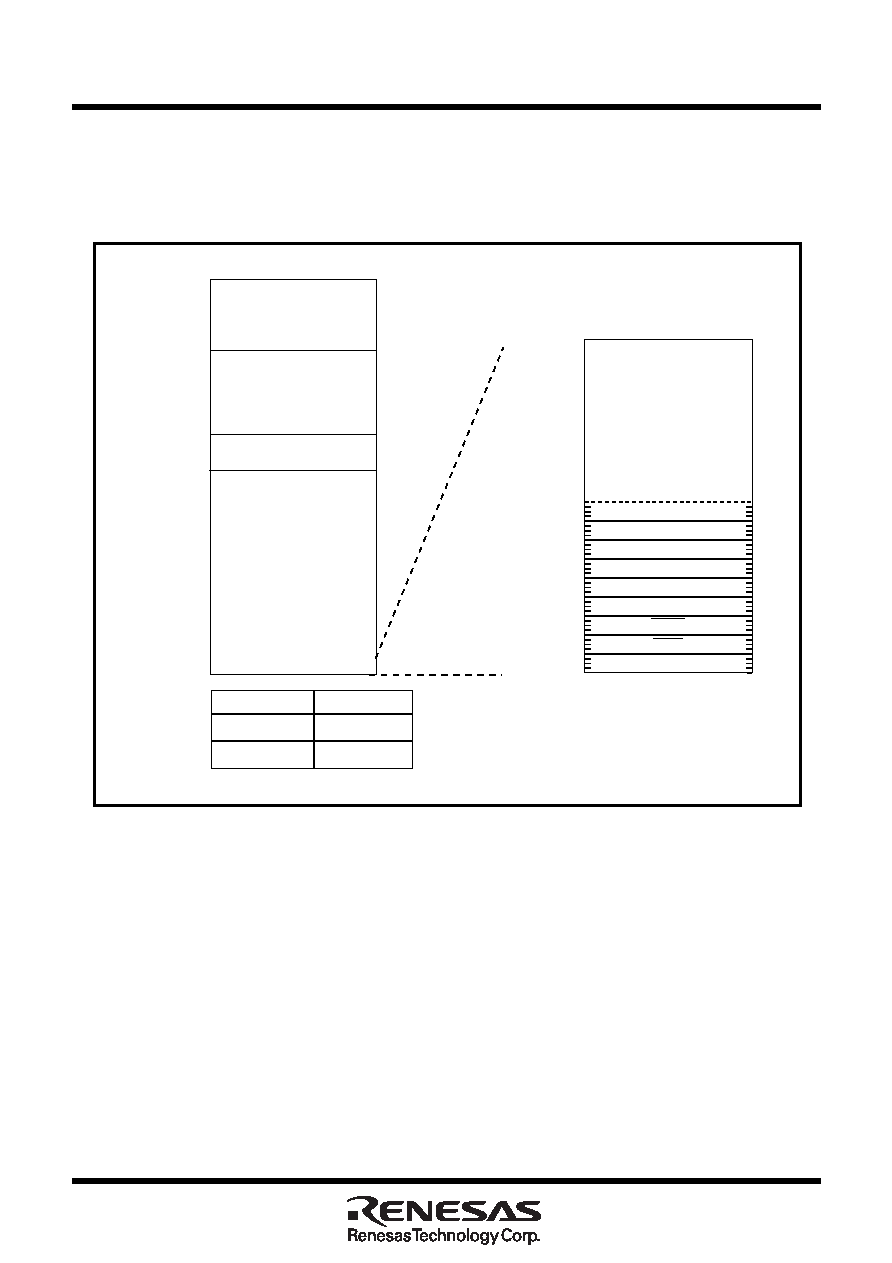

Figure 5.3.1 shows the memory map. Figures 5.3.2 and 5.3.3 show the SFR memory map.
0000016
FFFFF16
0040016
XXXXX16
0400016
External ROM area
SFR area
For detail, see Figures
5.3.2 and 5.3.3
Internal Ram area
Internal reserved area
FFE0016
FFFDC16
FFFFF16
Underfined instruction
Overfiow
BRK instruction
Address match
Single step
Watchdog timer
Reset
Special page
vector table
DBC
NMI
013FF16
3K byte
02BFF16
10K byte
XXXXX16
RAM size
Figure 5.3.1. Memory map
