CC1110
CC1110 PRELIMINARY Datasheet (Rev. 1.01) SWRS033A
Page 199 of 202
20 Package Description (QLP 36)
All dimensions are in millimeters, angles in degrees. NOTE: The
CC1110 is available in RoHS lead-
free package only. Compliant with JEDEC: MO-220.

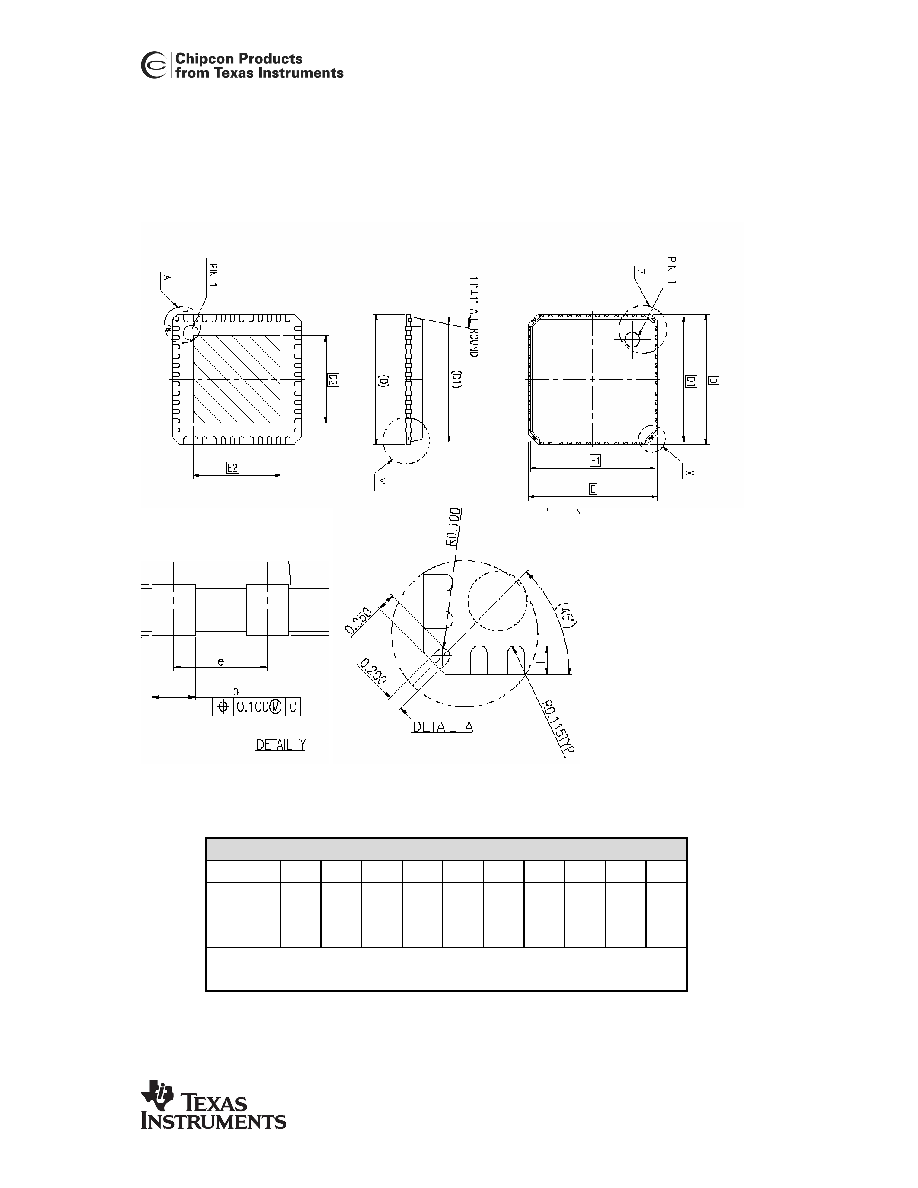

Figure 40: Package dimensions drawing
Quad Leadless Package (QLP)
D
D1
E
E1
e
b
L
D2
E2
QLP 36
Min
Max
5.90
6.00
6.10
5.65
5.75
5.85
5.90
6.00
6.10
5.65
5.75
5.85
0.50
0.18
0.23
0.30
0.45
0.55
0.65
1.75
4.40
1.75
4.40
The overall package height is 0.85 +/- 0.05
All dimensions in mm
Table 53: Package dimensions
