KSZ9563R
DS00002419D-page 202
 2017-2018 Microchip Technology Inc.

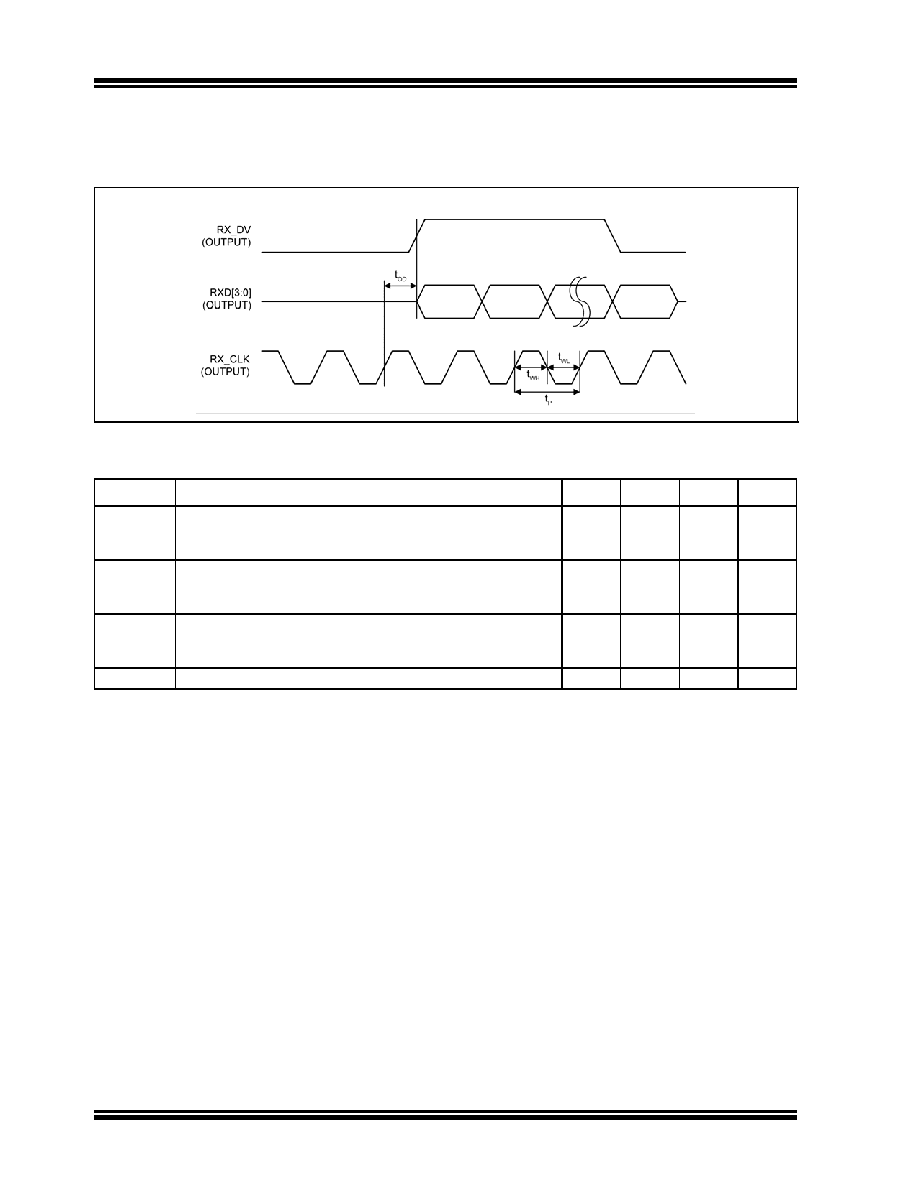

6.4.2.3
MII Output Timing in PHY Mode
FIGURE 6-4:
MII OUTPUT TIMING IN PHY MODE
TABLE 6-5:
MII OUTPUT TIMING IN PHY MODE VALUES
Symbol
Description
Min
Typ
Max
Units
tP
(100BASE-TX /
10BASE-T)
RX_CLK period
40/400
ns
tWL
(100BASE-TX /
10BASE-T)
RX_CLK pulse width low
20/200
ns
tWH
(100BASE-TX /
10BASE-T)
RX_CLK pulse width high
20/200
ns
tOD
RX_DV, RXD[3:0] output delay from rising edge of RX_CLK
20
ns
