2 pole telecom/signal relay

Through Hole Type (THT)

Non-polarized. non-latching 1 coil

Features

– Telecom/signal relay (dry circuit, test access, ringing)

– Slim line 20 x 10 mm, 0.795 x 0.393 inch

– Switching current 2 A

– 2 changeover contacts (2 form C / DPDT)

– Bifurcated contacts

– Meets FCC Part 68 and ITU-T K20

Typical applications

– Communications equipment

Linecard application – analog, ISDN, xDSL

PABX

Voice over IP

– Office and business equipment

– Measurement and control equipment

– Consumer electronics

– Set top boxes, HiFi

– Medical equipment

- Automotive Equipment

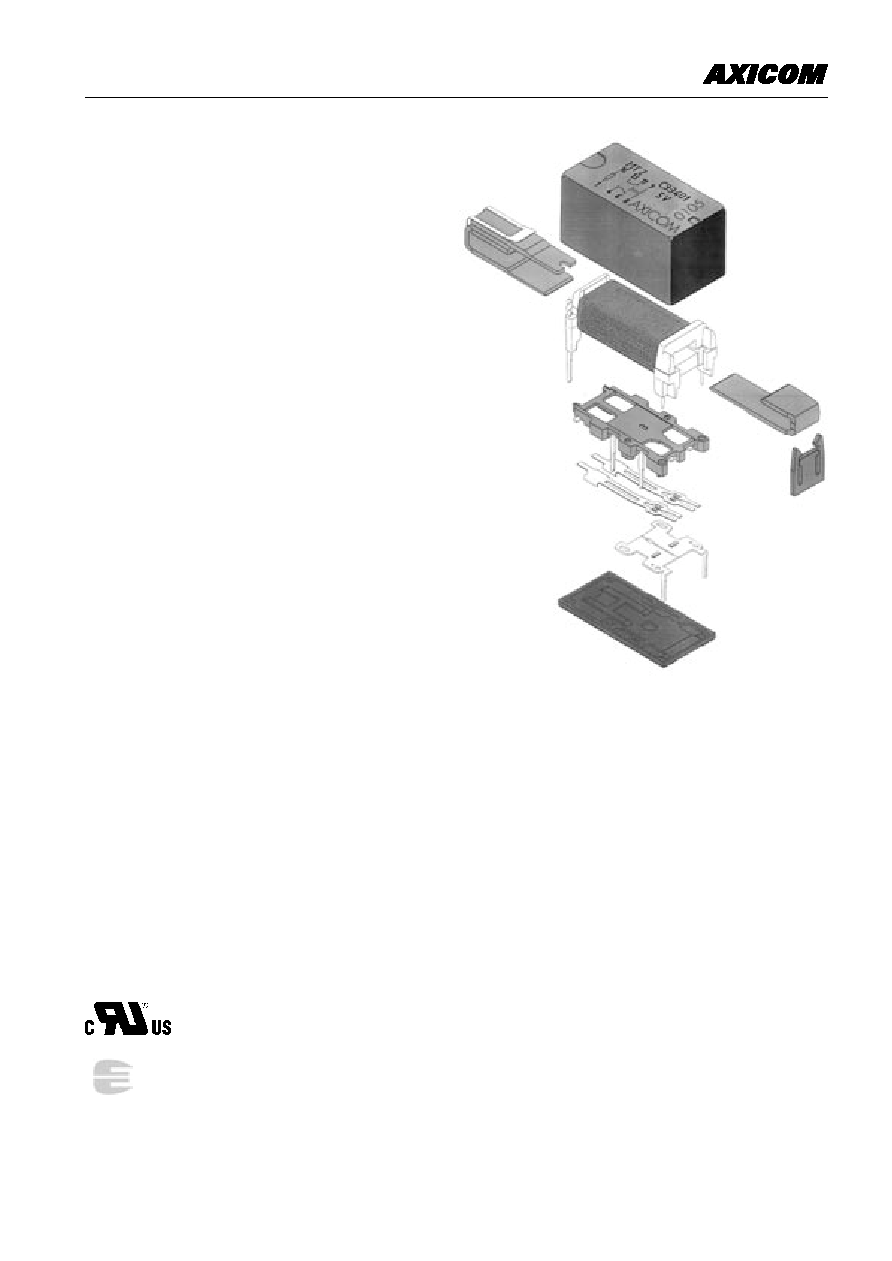

MT2 Relay

UL 508

File No. E 111441

IEC 61811-52:02

(QC160504)

Page 2 (9)

108-98006 Rev. C

European Directive conformance:

MT2 relay product conformance according to:

Directive 2000/53/EC: ELV (End of Life of Vehicles)

Directive 2002/95/EC: ROHS (Restrictions of the

use of certain hazardous substances in electrical and

electronic equipment)

Compliance is evidenced by written declaration from all raw

material suppliers.

Tyco Electronics AXICOM only has responsibility for the proper

processing of these materials.

Confirmation is valid for date codes ≥ 0416
